6 Millwork Drawing Examples to Enhance Your Interior Designs

Millwork drawings are essential for adding detailed craftsmanship and functional design elements to various room types. These detailed drawings guide the construction and installation of custom woodwork, cabinetry, and other built-in furniture, ensuring precision and quality.
At Rayon, we offer fully customizable styles and blocks, allowing architects and interior designers to adapt each template to fit their specific project needs.

In this article, we showcase six exemplary millwork templates designed in Rayon, each tailored to different room types. These templates provide comprehensive details and design inspirations to elevate your interior projects.

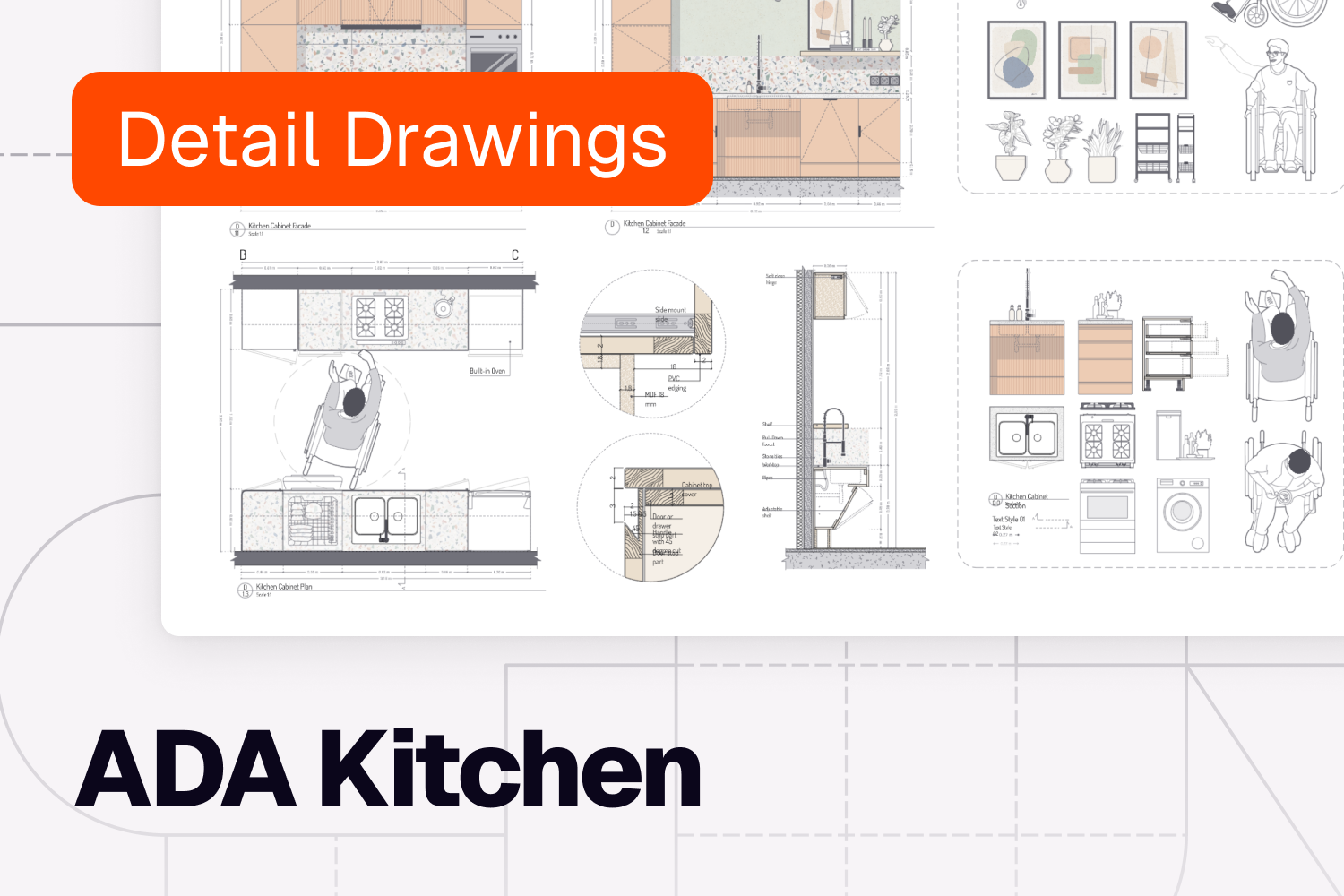

1. Template Millwork: ADA Kitchen

Open in Rayon

The ADA Kitchen millwork template focuses on accessibility, ensuring that all kitchen elements are within reach and functional for individuals using wheelchairs. It features detailed cabinetry, appliance placements, and clearances.

Key Features:

• Custom Cabinetry: Cabinets with pull-down shelves and easy-to-grasp handles.
• Appliance Accessibility: Properly positioned ovens and sinks with ample knee space.
• Clearance Details: Adequate space around appliances and counters for wheelchair maneuverability.

Real-Life Application:

An interior designer working on a residential kitchen remodel for a client with mobility challenges can use this template to ensure all kitchen elements are both accessible and stylish.

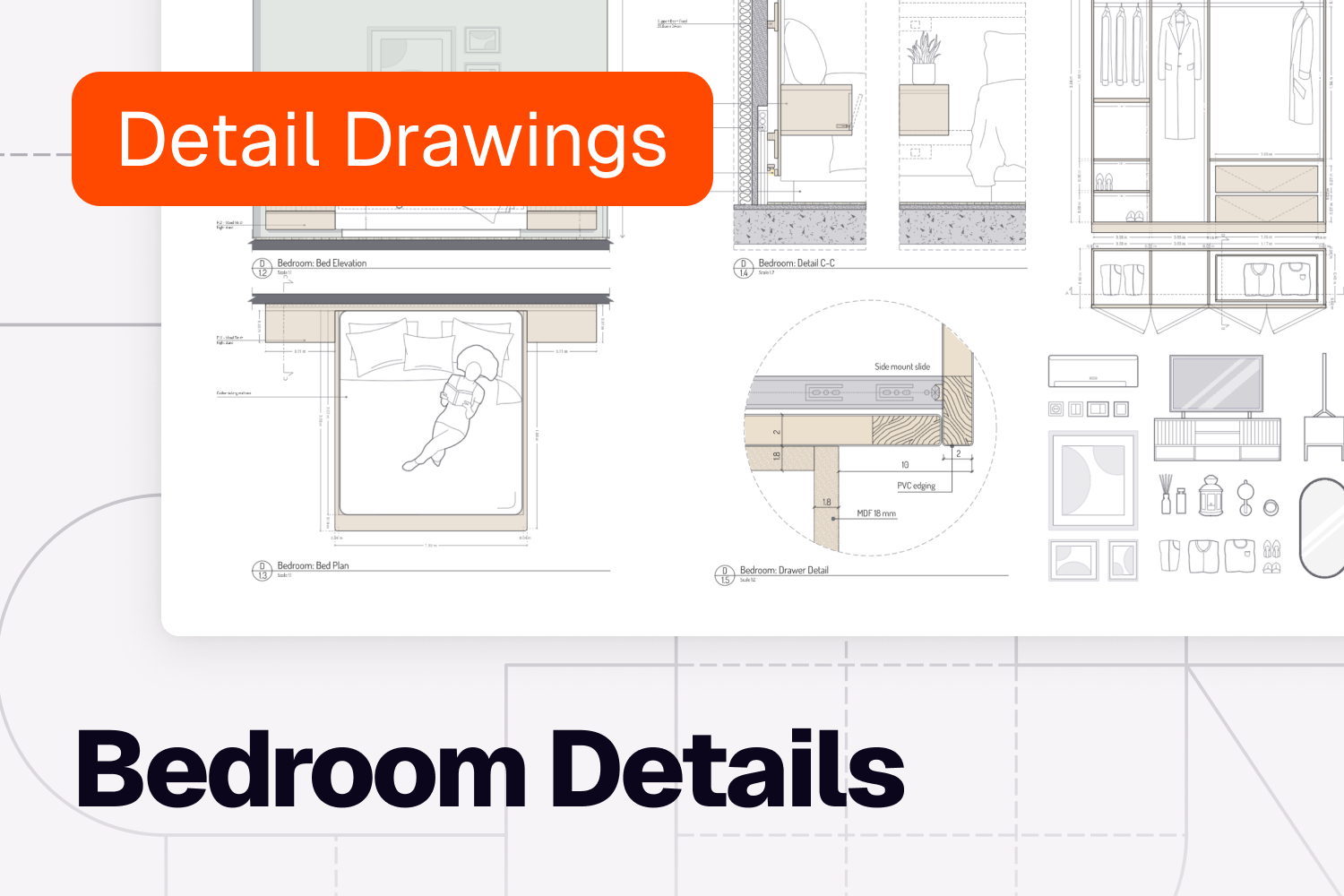

2. Template Millwork: Bedroom Details

Open in Rayon

This template provides intricate details for custom bedroom millwork, including built-in wardrobes, bedside tables, and decorative wall panels. It aims to combine functionality with aesthetic appeal.

Key Features:

• Built-In Wardrobes: Detailed sections for wardrobes with hanging spaces, drawers, and shelving.
• Bedside Tables: Designs for integrated bedside tables with storage options.
• Decorative Elements: Wall paneling and headboard details that enhance the bedroom's visual appeal.

Real-Life Application:

An architect designing a luxury bedroom suite can utilize this template to create a cohesive and custom-built environment that maximizes storage and style.

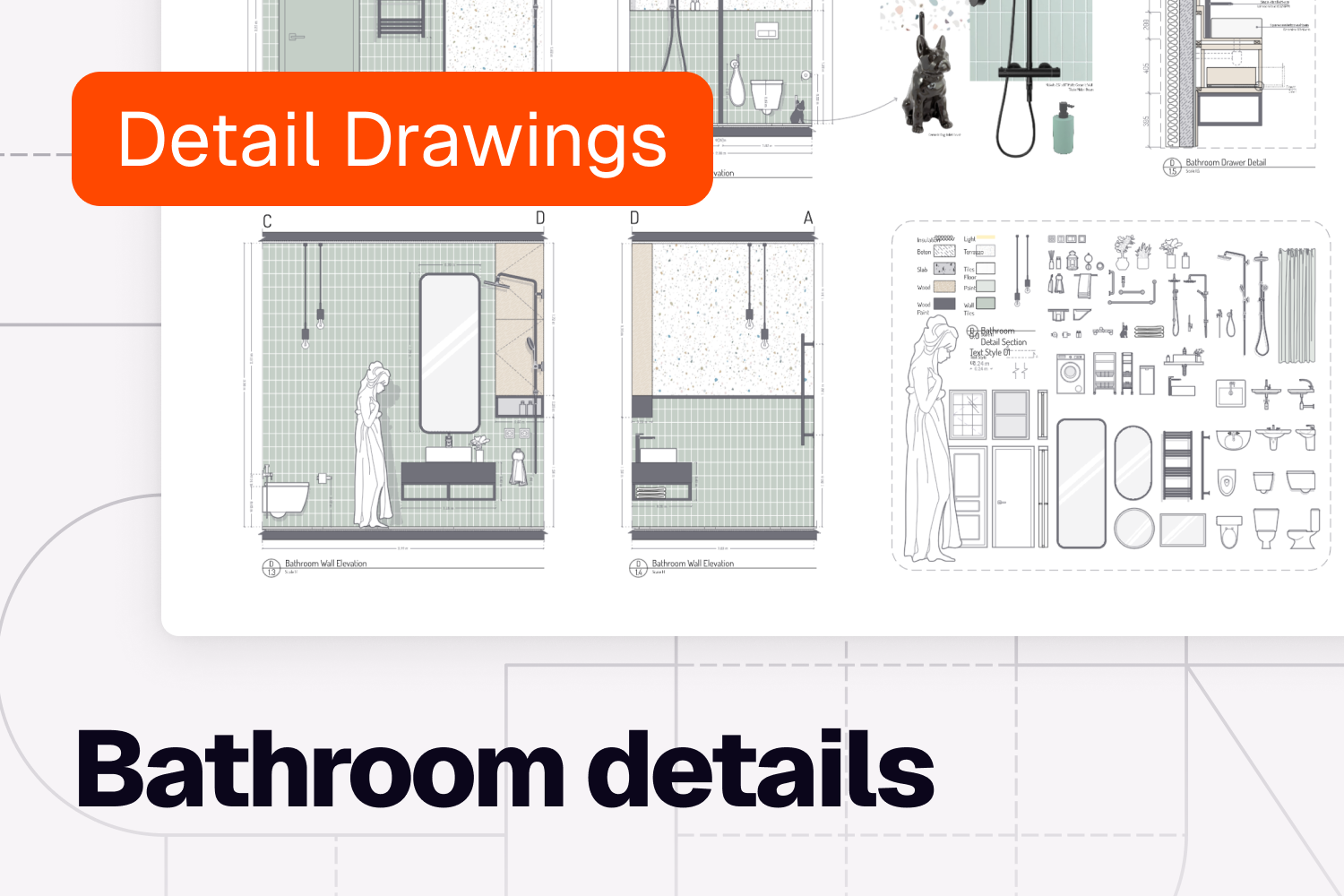

3. Template Millwork: Bathroom Details

Open in Rayon

The Bathroom Details template focuses on optimizing small spaces with custom cabinetry, vanity units, and integrated storage solutions. It ensures both functionality and a spa-like aesthetic.

Key Features:

• Vanity Units: Custom vanities with integrated sinks and ample storage.
• Storage Solutions: Detailed designs for cabinetry that maximizes bathroom storage without compromising on style.
• Decorative Finishes: Elegant finishes and fixtures that contribute to a luxurious bathroom experience.

Real-Life Application:

A space planner redesigning a compact urban bathroom can rely on this template to incorporate necessary storage and functional elements while maintaining a clean, modern look.

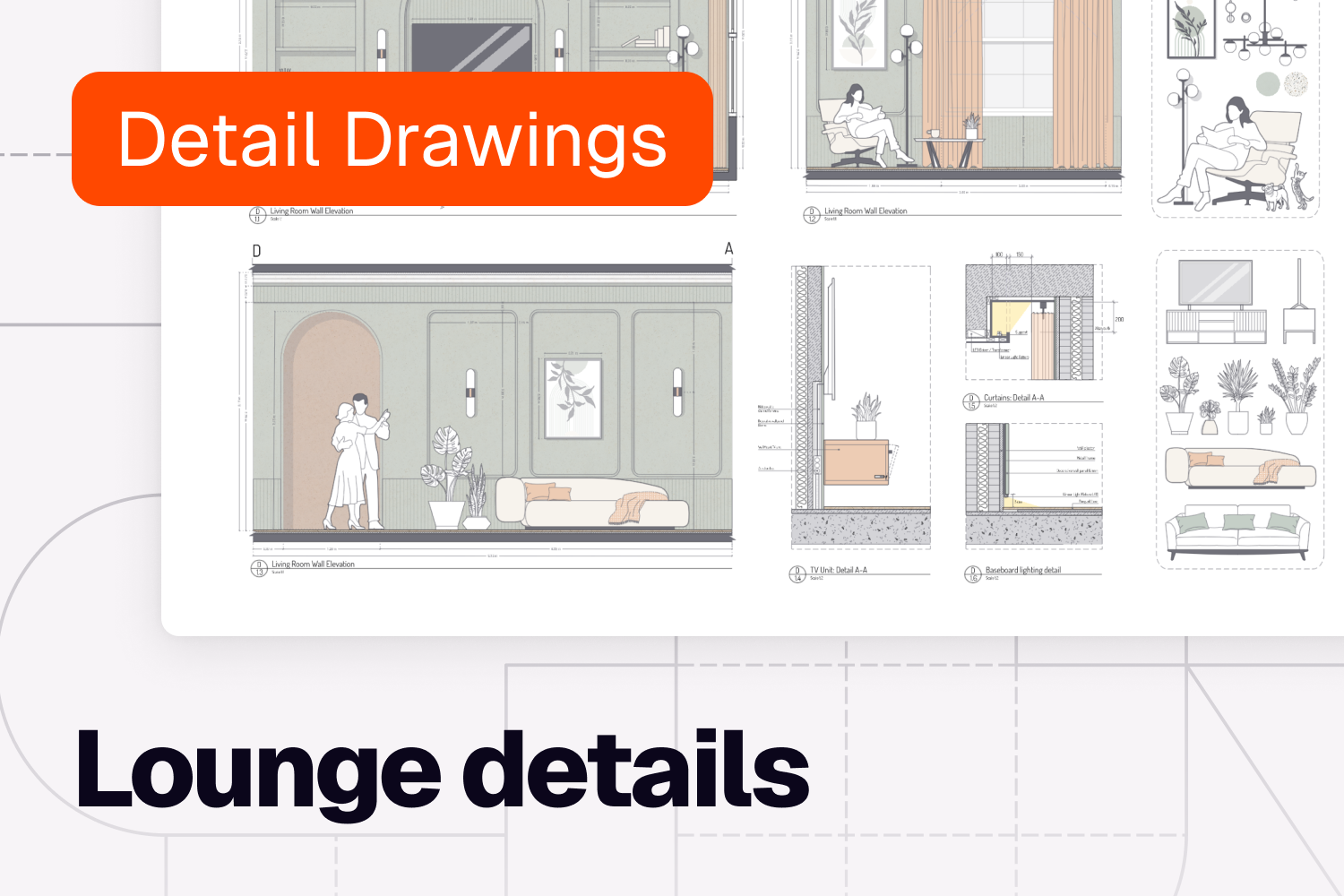

4. Template Millwork: Lounge Details

Open in Rayon

This template provides detailed millwork for a lounge area, including custom shelving, entertainment units, and integrated seating. The design aims to create a cohesive and inviting living space.

Key Features:

• Entertainment Units: Custom units designed to house media equipment and decor.
• Shelving: Built-in shelves for books, decorative items, and personal belongings.
• Integrated Seating: Designs for comfortable and stylish built-in seating areas.

Real-Life Application: An interior designer transforming a living room into a multifunctional lounge can use this template to ensure all elements are perfectly integrated and tailored to the client's needs.

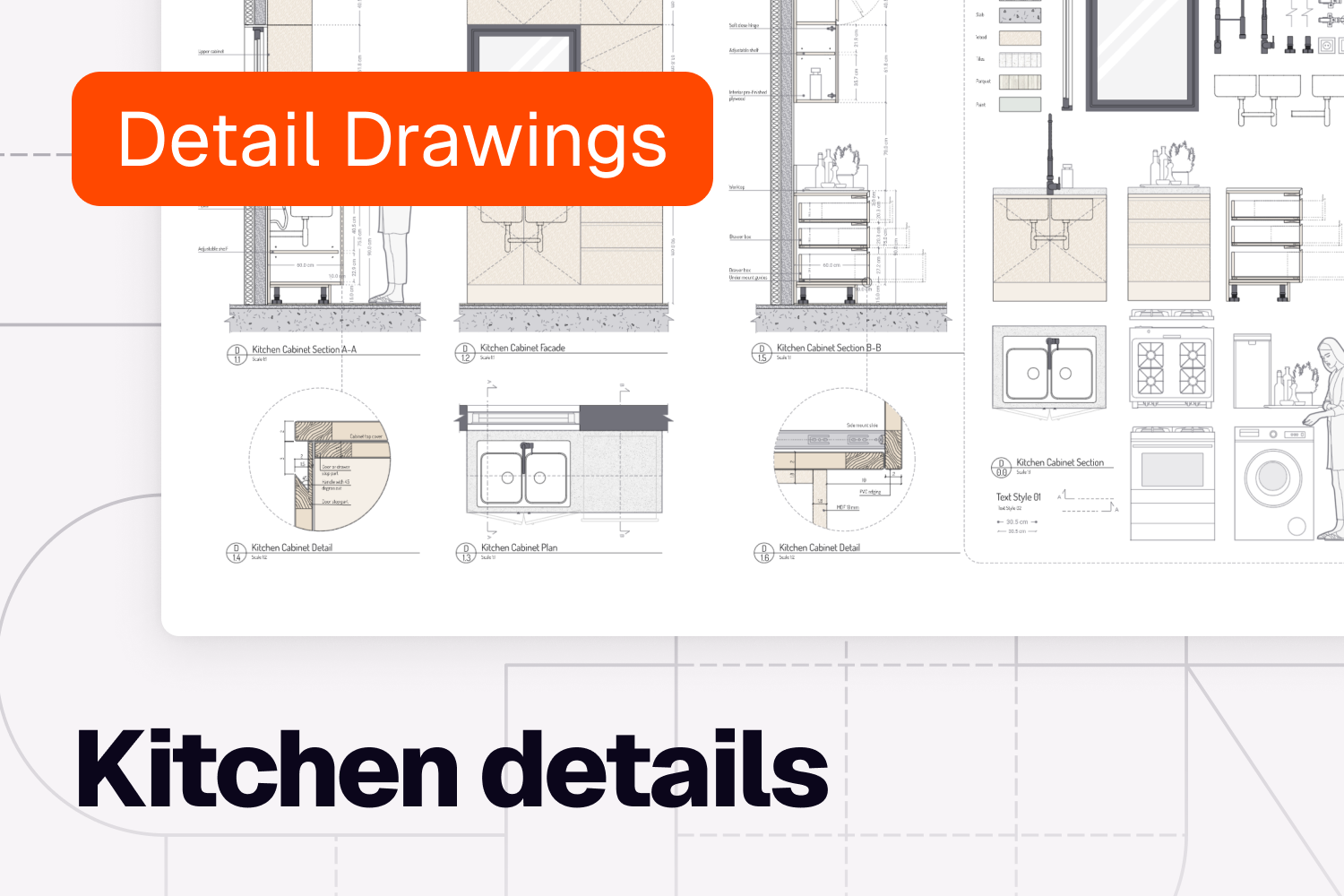

5. Template Millwork: Kitchen Details

Open in Rayon

The Kitchen Details template includes comprehensive designs for cabinetry, islands, and storage solutions, focusing on efficiency and style. It provides a blueprint for a functional and aesthetically pleasing kitchen.

Key Features:

• Cabinetry Designs: Detailed sections for upper and lower cabinets, including materials and finishes.
• Island Details: Designs for kitchen islands with storage, seating, and workspace.
• Storage Solutions: Efficient use of space with custom storage options.

Real-Life Application:

A kitchen designer creating a bespoke kitchen for a gourmet chef can utilize this template to ensure the layout is both practical and visually stunning.

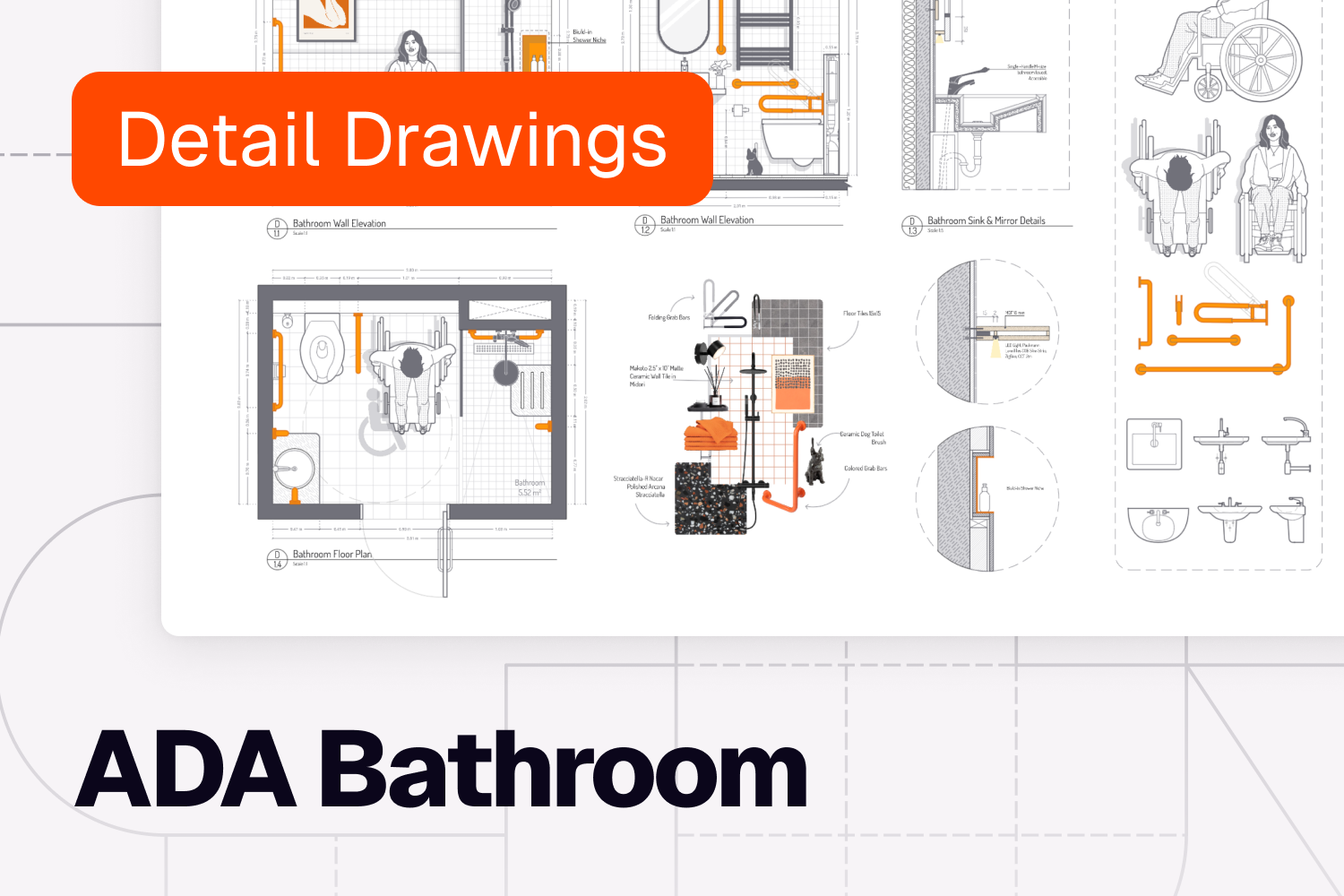

6. Template Millwork: ADA Bathroom Details

Open in Rayon

The ADA Bathroom Details template is designed to ensure accessibility and comfort for individuals with disabilities. It includes detailed layouts for fixtures, clearances, and support elements.

Key Features:

• Accessible Fixtures: Sinks, toilets, and showers designed for easy access and use by individuals with disabilities.
• Support Elements: Grab bars, seating, and other supportive features integrated seamlessly into the design.
• Clearance Details: Adequate space around fixtures for wheelchair maneuverability and comfort.

Real-Life Application:

An architect designing a public or private bathroom for accessibility can use this template to ensure all elements meet ADA standards while maintaining a cohesive design.

How Rayon Help Interior Designers Integrate These Templates

Comprehensive Styles:

Rayon offers a complete palette of styles, allowing designers to customize every element of their millwork drawings. This feature is perfect for adding personal touches and achieving the desired aesthetic.

Extensive Library of CAD Blocks:

With over 2,000 CAD blocks, Rayon provides all the elements needed to illustrate detailed millwork drawings, from cabinetry to decorative elements, ensuring precision and variety.

Fully Customizable Designs:

Every aspect of Rayon's templates is fully customizable, making it easy for designers to adapt millwork details to specific projects and client requirements. This flexibility ensures that the final design perfectly matches the intended vision and functionality.

By leveraging Rayon's tools and resources, interior designers can create detailed, accurate, and beautiful millwork drawings that enhance the functionality and aesthetic appeal of any room.
