5 bathroom layouts templates for Interior Designers and Architects

Designing a bathroom that blends functionality with aesthetics is a crucial aspect of any interior design project.

A well-thought-out bathroom layout not only improves the living experience but also maximizes the potential of the space. Whether you’re designing for luxury homes or smaller apartments, having the right templates can simplify your workflow and provide a strong foundation for your designs.

In this article, we’ll explore five professional bathroom layout templates, each offering a complete set of resources including floor plans, elevations, mood boards, and CAD blocks. Perfect for interior designers and architects, these templates will inspire your projects and serve as a solid starting point for creating stunning, functional bathrooms.

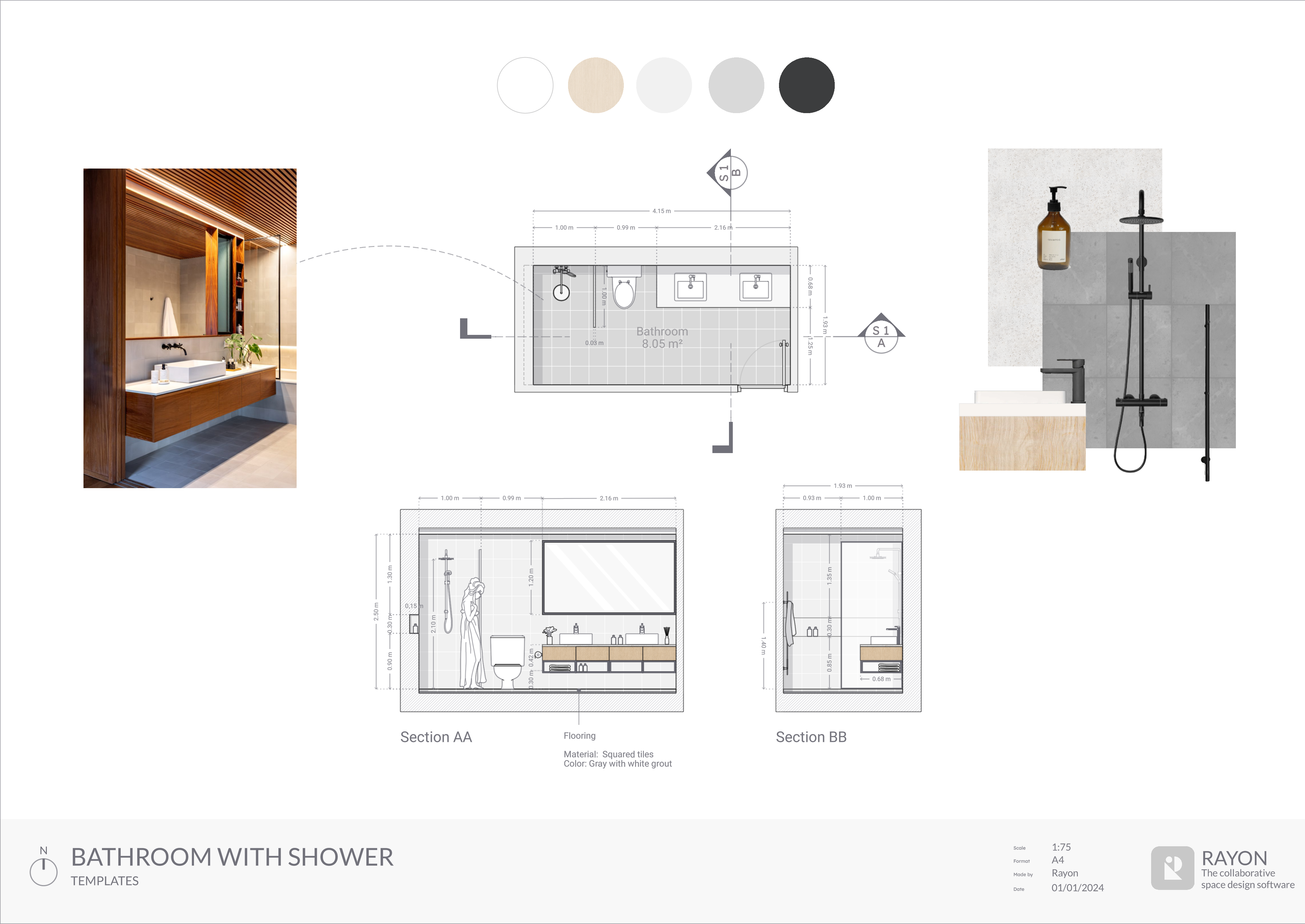

1. Bathroom with shower layout

For clients focused on functionality without sacrificing modern design, the bathroom with shower layout is the perfect choice.

This layout is compact, with the floor plan measuring 8.05 m², yet it offers a highly efficient arrangement. The design features a spacious shower, double sinks, and a toilet, with minimalist yet practical storage solutions.

When to use this layout?

This layout is ideal for small residential projects or urban apartments where space is limited but comfort and design are still important. It works particularly well in guest bathrooms or secondary bathrooms.

Design and technical recommendations:

• In a smaller bathroom, maximizing vertical space is key. Consider adding built-in shelving within the shower for storage and using light-reflecting materials, such as large-format tiles or glass, to make the room feel more expansive.
• Ensure there’s proper drainage and the flooring is sloped correctly to avoid water pooling outside the shower area.

→ Get the bathroom with shower template

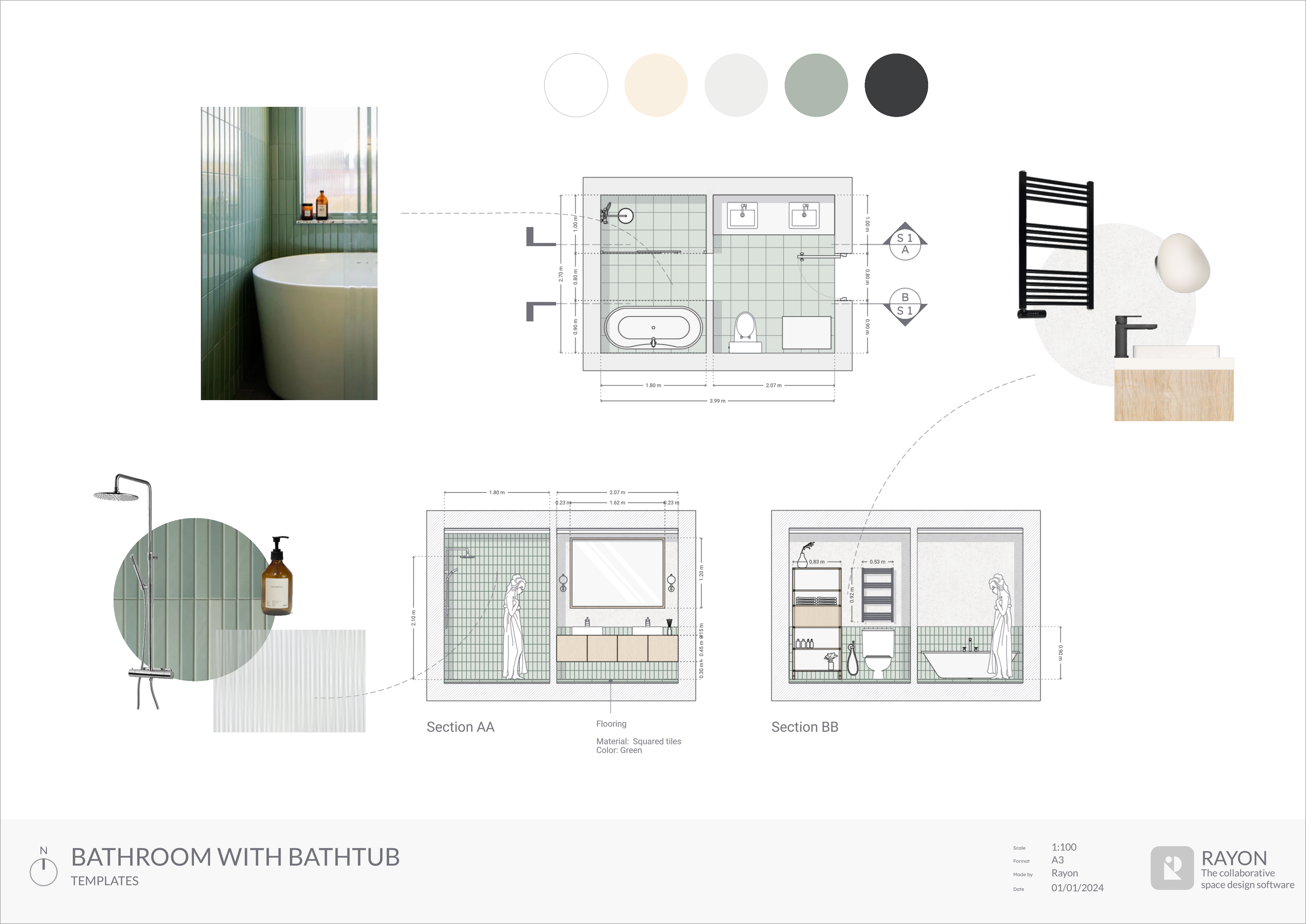

2. Bathroom with bathtub layout

This layout offers a well-balanced solution for residential projects, combining aesthetic appeal with efficient use of space.

The focal point is a standard bathtub, complemented by a functional layout that includes double sinks, a toilet, and storage. Measuring 10.76 m², this bathroom layout is ideal for medium to large homes.

When to use this layout?

This is a versatile layout suitable for family bathrooms or medium-sized master bathrooms. It strikes a balance between relaxation and practicality, offering a functional setup for daily use while still featuring a bathtub for soaking.

Design and technical recommendations:

• To maximize the room's potential, ensure that the bathtub placement doesn’t obstruct access to essential fixtures. In smaller homes, opt for wall-mounted vanities to free up floor space and create an illusion of a larger bathroom.
• Install proper ventilation to avoid moisture buildup, especially in areas prone to steam from both the bathtub and shower.

→ Get the bathroom with bathtub template

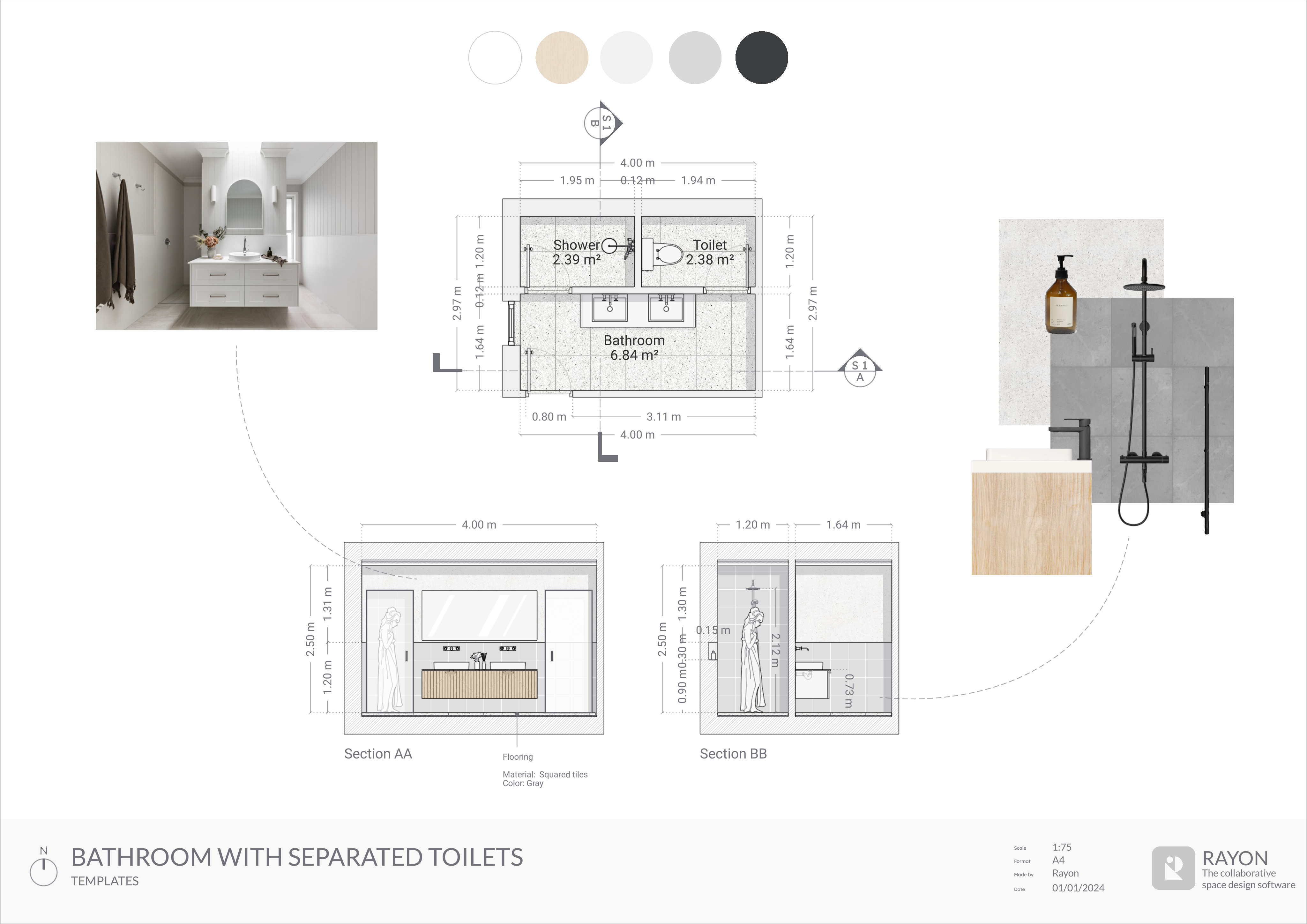

3. Bathroom with separated toilets

This layout is designed for clients who value privacy and hygiene.

With the toilet separated from the main bathroom area, it offers a practical solution for shared bathrooms or family homes. The floor plan measures 11.61 m², making it a compact but well-organized space.

When to use this layout?

This layout is perfect for shared bathrooms in family homes, where multiple people may need to use the space at the same time. By separating the toilet from the main bathroom, it offers greater flexibility and privacy for residents.

Design and technical recommendations:

• The separation of the toilet also allows for better ventilation and cleaner lines in the overall bathroom design. Consider using contrasting materials between the toilet area and the main bathroom space to visually define these zones.
• Ensure adequate ventilation to maintain air quality and hygiene in the enclosed toilet area.

→ Get the bathroom with toilets template

4. Bathroom with jacuzzi layout

The bathroom with jacuzzi layout combines luxury and functionality, making it a standout feature in high-end residential projects.

The centerpiece here is a Jacuzzi, offering a retreat for clients looking to indulge in relaxation. The floor plan is 13.06 m², offering ample space for a large Jacuzzi, shower, and double sinks.

When to use this layout?

This layout is perfect for projects where the client desires a more opulent bathroom experience. It's well-suited for homes with larger master bathrooms, luxury apartments, or vacation homes where relaxation is a primary focus.

Design and technical recommendations:

• Consider integrating natural elements such as stone or wooden accents around the tub give a luxurious feel to the Jacuzzi.
• Before incorporating a Jacuzzi, always verify whether the floor can support the additional weight. Filled with water, a Jacuzzi can become extremely heavy, and reinforcing the subfloor may be necessary, particularly in upper-level installations. Additionally, ensure there is enough clearance around the Jacuzzi for safe and easy access to plumbing fixtures for future maintenance.

→ Get the bathroom with jacuzzi template

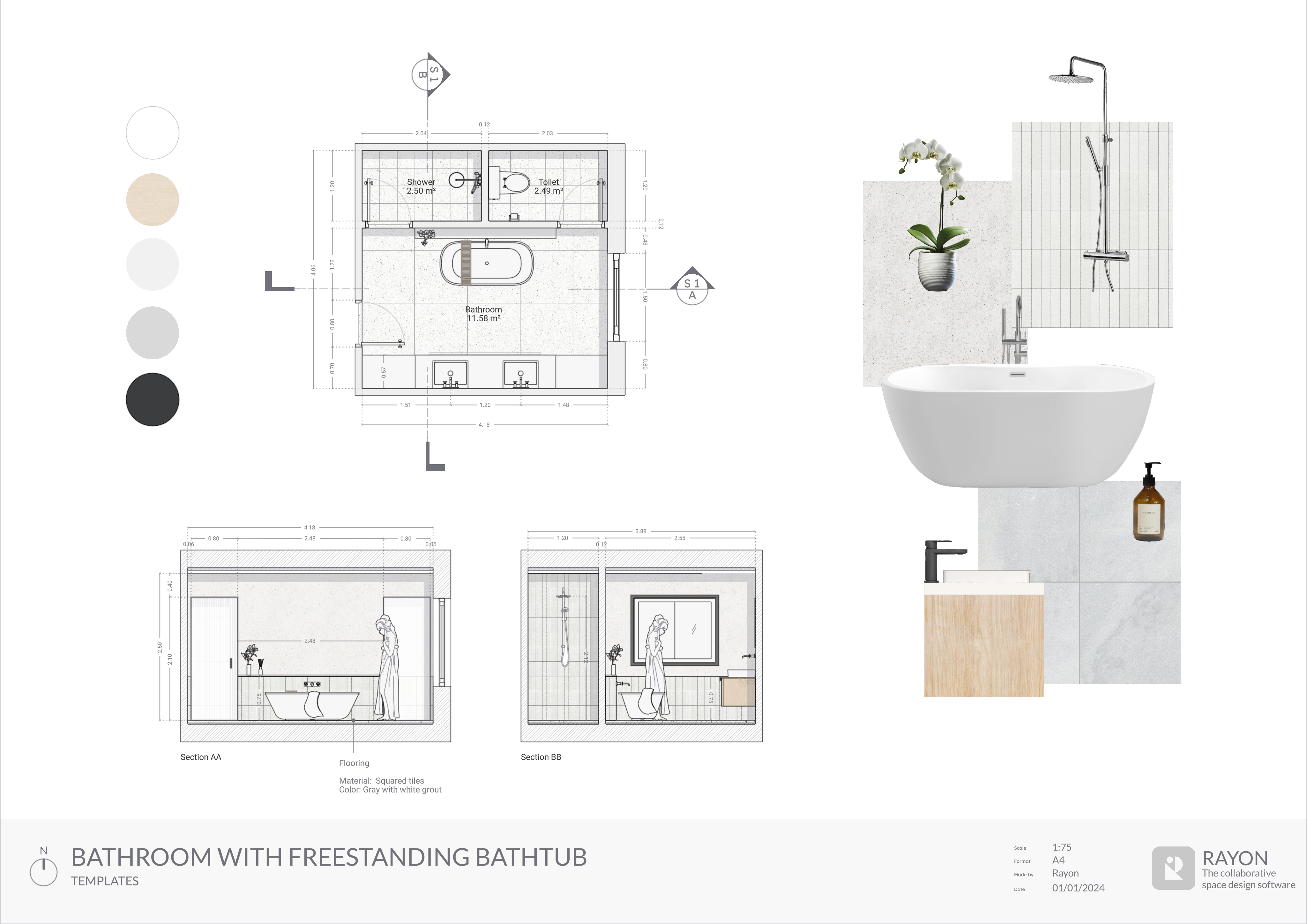

5. Bathroom with freestanding bathtub layout

This bathroom layout is perfect for clients seeking a spa-like experience. With a beautiful freestanding bathtub serving as the centerpiece, it creates a luxurious atmosphere.

This layout prioritizes open space and a sleek aesthetic while maintaining functionality. The floor plan attached measures 16.98 m², providing enough room for a dedicated shower and separate toilet area, ensuring comfort and privacy.

When to use this layout?

This design is ideal for larger bathrooms in residential projects where the client wants to make a bold statement. It's particularly well-suited for creating a relaxing, spa-like environment in master bathrooms or upscale guest bathrooms. In contrast, this layout wouldn't suit smaller spaces like studio apartments due to its focus on spaciousness.

Design and technical recommendations:

• Make the freestanding bathtub the focal point of the room, and ensure there is enough surrounding space for ease of movement. Separating the toilet and shower from the bathtub creates distinct functional zones that contribute to the bathroom’s overall elegance.
• Verify that the plumbing setup provides sufficient water pressure for both the bathtub and the shower. Ensure the bathtub drain is correctly aligned with the plumbing system to avoid installation issues.

→ Get the bathroom with freestanding bathtub template

Additional guidelines to consider for every bathroom design:

• Maximize natural lighting: Maximize natural light by using large windows or skylights. If privacy is an issue, consider frosted glass or blinds that allow light to pass through while providing privacy.
• Use adapted materials for flooring, walls and surfaces: Choose water-resistant surfaces such as ceramic tiles, glass, or waterproof paint. For added luxury, consider using marble or quartz for countertops. Ensure materials are easy to clean and maintain, especially in high-traffic bathrooms. For the floor, opt for slip-resistant materials like textured tiles, natural stone, or porcelain.
• Include storage solutions: Maximize vertical space by incorporating recessed shelves, tall cabinets, or built-in storage to reduce clutter and make the space feel larger.

If you want to deep dive into bathroom design best practices, you can check the space planning guide, where we share useful tips about rules, dimensions and types of layouts when designing a bathroom.

Conclusion:

Creating a beautiful and functional bathroom layout is essential for both the living experience and the overall design of a home. Whether you're focusing on luxurious master bathrooms or compact spaces, using professional templates like those showcased in this article will help you design faster, without starting from scratch.
